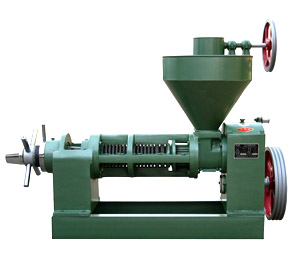

6YL-95型螺旋榨油机

95型榨油机是我国广大地区使用较多的一种小型榨油机设备，该机适用的油料较为广泛，对油菜籽、棉籽仁、花生仁、芝麻、大豆、油茶籽、米糠、葵花籽等多种油料都可进行连续压榨，全国95型螺旋榨油机仅只在生产工艺上稍有差别。.因此，该95榨油机可广泛适用于中小型油厂和油料加工个体户。双象机械生产的6YL-95型螺旋榨油机技术成熟，质量可靠，在各个地区得到了广泛的应用 ，并出口非洲、东南亚、欧美等国家。

1. 榨轴转速： 35-39转/分
Shaft speed: 35-39 转/分
2. 齿轮箱转比： 15/40*15/55=1:5.11
Gear ratio in gearbox: 15/40*15/55=1:9.7
3. 配用动力：7.5KW
Motor: 7.5 KW
4，三角带长度： 3150mm--4000mm
Belt Model: Type B Length: 3150mm—4000mm
1. 外型尺寸：长*宽*高
1910mm*610mm*765mm
Packing Size: L*W*H
1910mm*610mm*765mm
2. 单机重量：约420 KG
Weight: 420 KG
3. 产量：4-5吨/ 24小时
Capacity: 4-5T/24 hours

工作原理:oration principle
榨油机运转时,将处理好的料胚带如料斗,油料从料斗进入榨膛。有榨螺的螺旋向里推进，进行压榨。
因料胚在榨油机的榨膛内是在运转状态下进行的，在榨膛高压的条件下，料胚和榨螺，榨膛之间产生很大的摩擦阻力。这样就能使料胚和料胚产生摩擦，造成相对的运动。另一放面，榨螺的根圆直径是逐渐增粗的，当榨螺转动时，螺纹使料胚即能向前推进又能向外翻转，同时靠近榨螺螺纹表面的料层随着榨轴转动，这样在榨膛里的每个料胚微粒都不是等速度同方向的运动。而在微粒之间也存在着相对的运动。有摩擦产生的热量又满足了榨油工艺操作上所必须的一份热量，有助于促使料胚中的蛋白质热变性，破坏了胶体，增加了塑性，同时也降低了油的粘性，容易压榨出油来，因而提高了榨油机的出油率。
When oil presses operating prepared material enters extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed. Under the high-pressure condition in the chamber ,friction between material and screw ,between material and chamber will be created ,which also creates friction and relative movement among material particles. On the other hand, root diameter of the pressing screw caries larger from one end to the other ,hence. When rotating ,it not only pushes particles moving forwards but turns them outwards as well ,meanwhile ,particles adjacent the screw will rotation along with screw’ rotating ,causing every particle inside the chamber to possess different speed. Therefore relative movement among particle creates heat which is necessary during manufacturing because of helping protein change property ,damage colloid ,increase plasticity ,decrease oil’s elasticity ,resulting in high oil productivity.

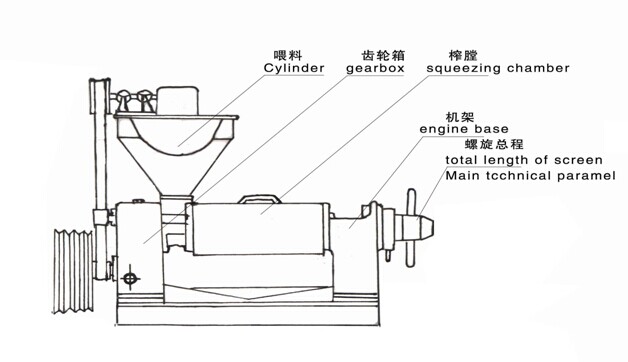

结构：该机有进料斗部分，齿轮箱部分，榨膛部分，榨螺部分，机架部分共五大部分组成：见下图

榨油机安装时必须在地脚螺栓牢固的安装基础上，使机体保持水平。电机安在进料斗的背面。
The oil press must be installed by bolts firmly on the foundation and be kept horizontal

95型螺旋榨油机开机前的要点:
1.开机前先将齿轮箱内加注4公斤机油.
2机器安装好后,按规定加注润滑油,检查各零部件是否紧固,操作手柄,插板是否灵活.
3.用手搬动大皮带轮查机器有无松动或卡机现象,若有异常及时排除.
4.调整皮带的松紧度,启动电机,检查槽轮方向是否与标志方向一致.
5检查准备工作做好后,松开紧锁螺母把榨螺拧到死点,再退回3-4圈,再前进半圈,保证榨螺与出饼口的间隙.
preparations before operating
12kg of lubricant needs to be filled into the gearbox.
After installing the machine, check whether lubricant has been filled in, bolts have been tightened, and handles are operable.
Check large pulley whether it is loose or blocked, repair it if necessary.
Adjust the tightness of the belt, switch on the motor and check its rotation direction.
Loosen the lock nut and tighten the screw to its end, then loose it for3-4circles and then tighten it again for half circle to assure the gap of the residue cake outlet.
95型螺旋榨油机开机: Operating
1、启动电机,开动机器,将饼加入6%-8%水分,倒入料斗,磨光榨膛,进料不可过猛,否则可能造成榨膛堵塞与卡死机器事故,因此开始下料应该缓慢均匀,待榨膛磨光后,正常出饼后,方可将料胚倒入料斗.
2.运转后观察出饼情况,如不出饼,将榨螺再退出1-2圈,如还不出饼,应停机检查.切记杜绝开带车.故障排除后再行初榨工作.正常运转时饼厚1-2毫米,饼成瓦片状,手捏不粘,内面光滑,外面发皱,表面不带油迹.
饼厚的调节：搬动调节螺旋上的手柄,将调节螺栓顺时针旋转,螺栓往外,饼就厚,反之饼就薄了。（调节螺栓为左T165x6）出饼圈与出渣稍头的锥角不同，每转一圈较饼厚度变化为0.4-0.5毫米。
3.榨油机运转中，应经常检查出油，出渣情况，正常时油大部分从条排与前几节园排流出。
4.如饼碎成渣，说明胚料太干。如发现饼发热（散出蒸汽）成大片状说明水分太高，应及时进行调节胚料水分的含量。
出渣：条排出渣时成细片状说明水分高，如出粉状含沫说明水分低。园排渣过多属压紧螺母未压紧圆排，应上紧压紧螺母，如水分合适，则条排不出渣或少出渣，圆排少量出渣也是允许的。料胚含水分的高低直接影响出油率，因此压榨时应控制好料胚的水分。
Feeding must be steady and slow at the beginning to avoid blocking
In the case no cake is extrude outward，return back the screw for 1-2circle 。If there is still no cake is observed，machine needs to be shut down and checked ，However， in any case， operating the machine backward is absolutely prohibited normally ，cake looks like tile but not sticky ；thickness is 1-2mm ，inner side is smooth ，out side creases and no oil the surface is allowed.
Cake thickness adjustment: Rotating the adjusting handle clockwise will make the cake thicker, otherwise will make it thinner. Each circle of adjustment (by adjustment bolt left hand T 165x6)will change the thickness 0.4-0.5mm.
When machine is operating, oil extruding and residue outlet need be checked
Frequently .Normally, most of oil will flow outward from square rods and several front round plates. Broken cake residue indicates the material is too dry; steam emerging from the cake residue indicates that it is too wet; In any case, water content in the raw material must be adjusted from time to time.
Slag slice emerging indicates too much water content and power-like slag low water content .Loose round plates will cause too much slag flowing outwards. However, adequate water content will cause slag flowing outwards from square rods; little slag from round plates is allowed. In a word, water content affects oil output rate, it needs adjusting properly.
95型螺旋榨油机停机: Stopping
1.正常停机应将料胚全部榨弯,反复将榨螺退进数次,将榨膛中语料 走完,将出饼放至最后,然后停车.
2.停电或因其它事故突然停车,先切断电源,抽出放料挡板, 用人力反转大皮带轮,使心轴反转时退出料胚,立即将榨螺轴推出榨膛(当人力反转大轮困难时,不得强制进行.以免损坏机器),进行清理.若抽不出来,应将压榨螺母松动,要把上榨笼拆钓,用螺丝刀逐个将圆排松动,清理,未经清理不得再行开车.
Repeatedly move screw forwards and backwards for several times and let all material resided in the chamber goes out and adjust the cake to the possible thinnest, then stop the machine.
When machine stops caused by any accident, power supply must be shut down first, then rotate large pulley manually backwards, let the material return out. Then pull out the shaft and clean it. In the case the shaft could not be pulled out, remove the upper case and loose lock nut, separate round plates and clean them one by one.

榨油机主要采用机油和黄油两种形式润滑。加油周期见下表

序号 NO	润滑部位 lubrication	油脂种类 lubricate	加油周期 Time span	换油周期 Lubricate replacement period
1	调节螺栓 Adjusting bolt	20号机械油 Mechanical oil NO.20	每班2次 1-2time/day
2	伞齿轮 Bevel gear	20号机械油 Mechanical oil NO.20	每班2次 1-2time/day
3	轴承座套 Bearing bush	20号机械油 Mechanical oil NO.20	每班2次 1-2time/day
4	齿轮箱 Gearbox	20号机械油 Mechanical oil NO.20	首次加油12kg	六个月
5	各滚动轴承 bearing	润滑油 Grease		每年一次

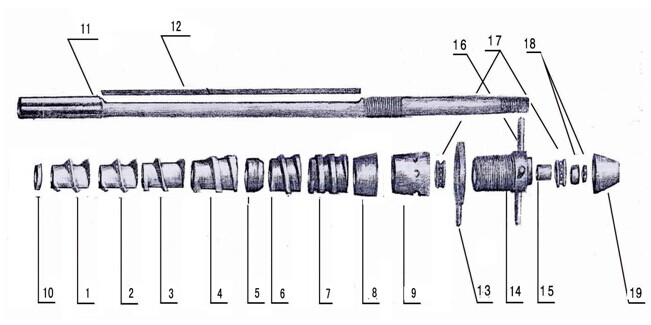

95型螺旋榨油机配件图形对照表，见下图和表格

标号 Number	零件名称 Name	尺寸 Size	每台数量 Qty per set	标号 Number	零件名称 Name	尺寸 Size	每台数量 Qty per set
1	1#榨螺 Worm No.2	110mm	1	12	长键 Long Flat Key		1
2	2#榨螺 Worm No.2	110mm	1	13	紧定螺母 Tight Nut		1
3	3#号榨螺 Worm No.3	115mm	1	14	调节螺栓 Adjusting Nut		1
4	4#榨螺 Worm No.4	129mm	1	15	含油套Adjusting Bolt Bush		2
5	5#榨螺 Worm No.5	50mm	1	16	大手柄 Bing Handle		4
6	6#榨螺 Worm No.6	75mm	1	17	轴承（8309） Bearing 8309		2
7	7#号榨螺 Worm No.7	75mm	1	18	圆螺母 End Nut		2
8	出渣梢头 Cake guide ring	75mm	1	19	保护帽 Safe cover		1
9	锁紧螺母 Press Nut		1		条排 Square Rods		16
10	档圈 Intermediate Ring		1		条排圈 Square rod holder		1
11	螺旋轴 Press Shaft		1

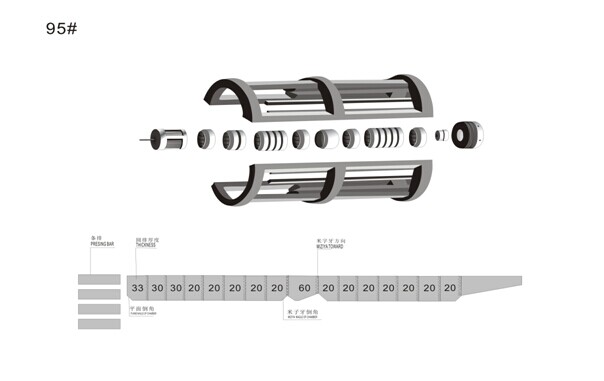

6YL-95C型螺旋榨油机榨笼（条排，骨圈，圆排的拆装方法）
Assembly / disassembly of press cage (round plates, square rods holder)



95型榨油机的主要零部件拆装:
榨笼(包括圆排、条排骨圈)的拆装方法:
旋转榨螺轴,将榨螺 从榨膛内抽出,然后用直径24毫米粗的铁棒插入出饼端压紧螺母 的孔内,逆时针方向旋转松动螺母:松动上榨笼两端4个M16的连结螺钉,卸掉连结上下榨笼的12个M16的螺栓,拆去上榨笼即可将圆排圈取出。
条排的拆装方法:
卸下条排骨圈用铁棒的一端从侧面抵住一根条排,用手敲击另一端,将一根条排打出,其余条排将自动松散下来.
条排的装配方法:
将条排圈立起,代出油槽面向下(建议下面放块木板),把条排逐个的整齐的排列在内壁上。带深油槽的一端朝下，两个条排的深油槽面不能对着放在一起。最后一个条排用金属棒打入》若条排松动，可以在条排之间加铁皮，使条排紧贴内壁，达到用手摸内壁无突起现象为止。
榨笼的装法：
将条排圈有出油槽面面向机架，再按圆排序号依次放入圆排。带出油槽面朝向机架。然后用压紧螺母少上几扣靠住圆排，在装上榨笼。（上下榨笼均为配对制造，如更换需上下一齐换掉）用卸下的螺栓逐个交替上紧。
Maintenance and Assembly/disassembly of Main parts
Assembly/disassembly of Main parts
Pressing cage (round plates, square rods holder)
Rotate the screw shaft and remove it from the chamber. Loose the lock nut on the outlet end by rotating it counter-clock wise using a 24 mm diameter bar, loose four M14bolts, remove ten M16 bolts which are used to connect upper and lower cases. However, after removing upper case, round plates and square rods holder can be pulled out.
Remove square rods:
After removing the holder, tap the end of one rod and take it out, then others will be easily removed.
Assembly of rods:
Erect the rod holder vertically and make its side with oil grooves locate downwards, better on a wooden plate, then put square rods to touch holders inner wall circumferentially with their grooves downwards again. However, grooves of every two adjacent rods should not be touched. Then insert shins (by a hammer) properly into rods gap to let than firmly touch rods holders inner wall. As a matter of fact, whole inner wall of rods should be smooth.
Assembly of the cage:
Put the groove side of rod the holder to face the machine body, and then insert round plates as per marks on them. Put lock nuts on to contact plates and then mount the upper case. Tighten bolts one by one.
榨螺的拆装方法：
（1）榨螺的拆法：停机后立即搬动手柄，把榨轴从榨膛内抽出，卸下保护帽、六方螺母、园螺母及调节螺栓，用直径16的铁棒插入锁紧螺母的孔内顺时针方向旋转（切记与轴芯配合的螺纹均为左旋），拆去紧锁螺母后，各节榨螺即可卸下。如榨螺（内孔进有细渣）因阻塞不好拆卸，可将地上垫一木板，二人将榨螺轻撞几 下即可卸下，若仍卸不下来，可用木柴火加热后再卸下。
（2）榨螺的安装：将榨螺立起细端向上，装上档圈，在把榨螺由1号起依次装于轴上，然后用锁紧螺母压紧，以防油渣深入榨螺孔内，影响榨螺的拆卸。（调节螺母使调节栓两端是8309轴承，装时两轴承大孔面均靠在调节螺栓的两端面。榨螺整体装齐后用两个（M42× 2）的螺帽背紧，背紧时注意两个8309轴承的缝隙 。用手搬转调节螺栓，感到转动灵活时即可。
Pressing screw：
Disassembly of the screw ：rotate the handle as soon as machine stops and pull out the screw from the chamber ，remove nuts and adjusting bolt. Insert a 16mm diameter bar into lock nut and turn and turn it clockwise.(important note: left hand screw).After taking off lock nut, each part of pressing screw can be removed. However, holes in the screw might be blocked by fine slag particles, which retard the disassembly. Tapping or heating pressing screw might help disassembling.
Mounting pressing screw :put small end of its shaft upwards, mount the first screw and then the second...sequence, tighten then by the lock nut to avoid particles in . On both ends of adjusting bolt, which is easily swung on the shaft by adjusting nut, two bearing 8309 are mounted. Be careful to make big hole sides of these two bearings touch adjusting bolts double ends. Finally , whole pressing screw will be tightened by two M42×2 nuts, But certainly, gaps of two bearings need to be carefully set. In fact, if hands can swing adjusting bolts smoothly, the adjustment is acceptable.
